Steps needed to load an ODBC driver to use with ADO support in dBASE PLUS 8 with ADO.  This paper assumes the user will be using Windows 7 or 8 – 64 bit operating systems and is detailing how to set the environment with MySQL drivers.







Microsoft Windows Database Connectivity support

This subject is focused on setting up an ADO driver for connection to a MySQL database. If you are not familiar with ADO from Microsoft, the following is from Microsoft:

“Microsoft ActiveX Data Objects (ADO) enable your client applications to access and manipulate data from a variety of sources through an OLE DB provider. Its primary benefits are ease of use, high speed, low memory overhead, and a small disk footprint. ADO supports key features for building client/server and Web-based applications.”  Microsoft – MSDN

ADO, much like the BDE, also supports the other database connectivity solution called ODBC (Open Database Connectivity) and it will allow connection to be passed from ODBC through ADO, again much like the BDE.  This example will be using an ODBC driver to communicate through ADO, as MySQL does not support an OLE DB driver.



Installing the 64-bit MySQL Driver (Windows 64-bit OS)

Download the driver from Oracle for the MySQL driver 64-bit.  This can be easily found by typing in Google:  ADO MYSQL Driver and it will take you to the driver locations for download.

Once the driver has been downloaded (in this case an .MSI) run it and follow the installation steps next.



Installing the 64-bit Driver Process:

This is the normal install process that occurs in Windows software.



























Installing Windows 7 – 64 bit using a 32-bit driver

Install the software, again this installation is no different than any other Windows install.



















Why do you need to load both 32-bit and 64-bit drivers?

There are issues with the drivers, so having both 32-bit and 64-bit on the machine clears up the issues.  This may be fixed in a future version of the drivers, but as of today, both drivers need to be loaded.  Additional information can be found here:  http://msdn.microsoft.com/en-us/library/ms712362(VS.85).aspx



Setting up the ODBC Driver before dBASE PLUS 8 with ADO

Since MySQL only supports ODBC and not OLE DB, we have to configure an ODBC data source in the Windows OS for the connectivity.

If you are in Windows XP, Vista, or Win 7, click the Start button and then Type in ODBC in the Search or Run edit boxes.  This should lead to Data Sources (ODBC) being displayed in the search results, click on that item to continue.



If you are using Windows 8, hold down the Windows keyboard button and hit or press the letter E.  This will bring you up to the same search box in Windows 8.  Type in ODBC and the search should return Data Sources (ODBC) and click on that item to continue.

Click the ADD button to add a new ODBC data source

Select the MySQL ODBC driver and click the Finish button



Put in the Data Source Name to be used for the connection



Fill in the IP and Port address for the MySQL database.  Then input the User name, Password, and Database to connect.

There are Advanced options under the Details>> button.  Set these if you need to.







Click the Test button to ensure connection success.  Click the OK button and then click the main Window’s OK button to exit that dialog.

When returning from the configure  dialog, you should see your new Data Source in the list above.  Press OK to continue










Setting up UDL Source:

A universal data link (.udl) file is essentially a text file that contains the connection string for an OLE DB data source. [Microsoft/msdn]  Creating a UDL connection is very easy in Windows, and the following is the step-by-step instructions for doing the process.

For this example, create a new Text file on the Desktop in Windows.

Rename the .txt file to a name like MySQL_ADO.UDL – it is extremely important to make sure the extension is .UDL!  The name can be anything, but the extension has to be .UDL.





Once you leave the rename, a warning will be displayed stating changing the extension could have drastic affects.  We want it to, so press the Yes button to continue

The icon should change from a text file to a new icon shown in the picture.







Right-mouse click on the .UDL file and select the Properties menu item.









This opens up the configuation setting for the UDL file.  Click on the Provider Tab to continue.

Now select the ODBC provider and click the next button.  Note:  This could take you to security, however, you want to click on the Connection tab if the security panel looks correct.





Use the Data Source name that we created with the ODBC process in the prior steps.  Click the down-arrow and select if from the list.

Test the connection.  You should see Succeeded and then press the OK button.  Next press the OK button on the Properties dialog to continue.





Now adding to dBASE PLUS 8 with ADO



Open dBASE PLUS 8 with ADO and click on the Menu Properties|Deskotp Properties menu item





Using the UDL method:

Now use the UDL file that was setup in the prior steps.

Click on the Connection Aliases tab.  Add an Alias name and click the pencil icon.

Click the Connection UDL File radio button and click the File name.





Chose the UDL file listed on the Desktop

Click the Add button and then click the Apply button



Setting up the Connection by creating a Connection String:

This can be done using a string of characters to connect to a database.

Type in the name of the Alias then click the Pencil icon.

This time click on the Connection statement radio button.  Then click the Data Link Properties button.





NOTE:  If you are planning to build a connection string, you must start dBASE as administrator so that the proper rights to create database connections is enabled.



Now click on the Use Connection String radio button and then hit the Build button.





The following dialog will be displayed.  Click the New… button









This can be a very long list.  Find the Driver you are looking for and select it.  In this example we will use the MySQL ODBC driver, then press the Next > button to continue

Name your data source, then press the Next > button.



This is a review pane.  If everything looks correct press the Finish button









The “manfacturer” database connection dialog will be displayed.



NOTE:  The Data Source Name and Description is not enabled; that information was collected earlier in the process.



Now, put in the TCP/IP address of the database, the Port, User Name, Password and click the Database dropdown to see the databases.  If it shows databases you are connected.  After picking the database click the Test button to ensure it.

This is displayed after clicking on the last Ok button.  The dialog should look as it did when we first started adding the Data Source.





Now use the slider to find the datasource that was defined in the prior steps.









Select it and then press the OK button.

The connection dialog is displayed to check your security credentials.

NOTE:  The reason for this is because the person could leave the process at any time and return at a later time.  The connection credential needs to be checked.



After inserting the security credentials, click the OK button to continue





Notice the Connection String edit box is now filled with the full connection string.





Press the Test Connection Button.  You should see the above dialog.



Press the Ok on the Data Link Properties diaog.





Notice now that the full connection string is located in the Connection statement area.  Press the OK button to continue.

Now that the String is filled in, press the Add button and then press the Apply button, press the OK button to finish out the process.





Using the Connection in dBASE PLUS 8 with ADO:

Now it is time to connect the defined databases with the included ADO components.

Create a new form, but do not use the Wizard.  Now go to the ADO Access tab on the Component palette.

Drop an ADODataBase, an ADOTable or an ADOQuery component onto the form.



ADODatabase Properties

Set the Database Name property to the property we defined in the UDL or Database Connection String process that was completed earlier.  Then set the Active property to True.

ADOTable Properties

Set the Database Name to the Connection on the ADOTable and input the Table Name property and then set the Active property to True.

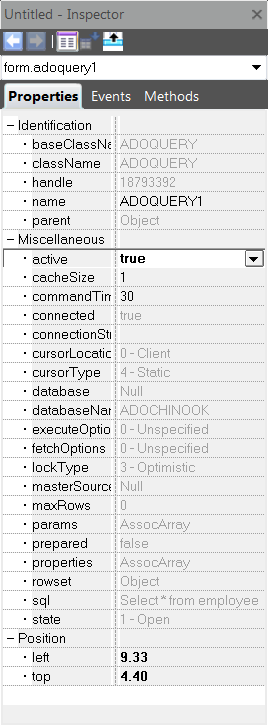

ADOQuery Properties

Set the Database Name to the Connection on the ADOQuery, set the .sql property  and then set the Active property to True.





In the Fields tool window, drag a Column to the form.

You should see the Column on your form showing data.
