WordBasic vs Visual Basic
Word 7.0 (Word95) used the WordBasic object. This was an entirely different object model. WordBasic language consists of a flat list of approximately 900 commands. Later versions of Word use Visual Basic for Applications. Visual Basic consists of a hierarchy of objects, each of which exposes a specific set of methods and properties (similar to statements and functions in WordBasic). While most WordBasic commands can be run at any time, Visual Basic only exposes the methods and properties of the available objects at a given time. None of the code using the word.application will work properly in the older version.
OleAutoclient()
The OleAutoclient class creates
an OLE2 controller that attaches to an OLE2 server. This simply means that
it starts an instance of the appropriate application that acts as an OLE
server and sets up the lines of communication. The OLE2 server is the host
application, in this case Microsoft Word. The OLE2 controller is the object
reference you create in your dBASE application. For example, the following
statement creates an instance of Microsoft Word:
|
oWord = new oleAutoclient("word.application") |
|
In some instances, the installation for MS Word does not create a “version independent” registry key. In those cases, you will need to specify the version of Word as word.application.8 for Word97, as word.application.9 for Word2000, or whatever version of Word you are using. You can find the correct terminology by starting RegEdit and searching for “word.application” and seeing the way it is listed in the registry.
The following code is a slightly
modified version of a method I use. It first attempts to get the correct
version from:
|
HKEY_CLASSES_ROOT\Word.Application\CurVer |
|
If you want your code to work on
computers that might have different versions of Word installed, you could
use your code inside a try/catch:
|
local oWord, bSuccess, n, c try oWord = new oleautoclient('Word.application') bSuccess = true catch(exception e) for n = 9 to 7 step - 1 bSuccess = false c = 'word.application.' + n try oWord = new oleautoclient(c) bSuccess := true catch(exception e) endtry if bSuccess exit endif next endtry if bSuccess // go ahead with your code else msgbox('Failed to start Word') endif |
|

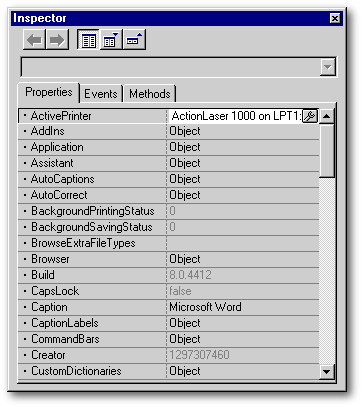

Once created thusly, you can type inspect(oWord) in the Command Window and, after a rather lengthy wait (there are a lot of things to load), view its properties, events and methods. With a lot of trial and error, you could probably use just that information to use the created object. You could see the properties, some of which may even have a drop-down list of choices. You can inspect other objects to which this one was related.
However, a better approach is to use the documentation supplied with the application with which you want to connect. In the case of MS Word, the Word Visual Basic help file should get you started. Note that the default installation of Word does not include this file. You need to select Custom Installation during the Word installation and specifically select the VB help files for those applications you want.

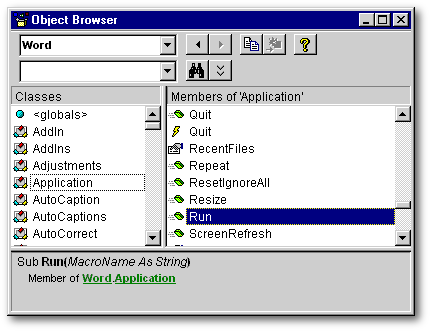

Another invaluable source of information for MS Office applications is the Visual Basic Object Browser. In this example, if you start MS Word, then click on the Tools menu, then click Macro, and then Visual Basic Editor, you will see the VB editor. Once there, click View and then Object Browser. The Object Browser will show you all the defined constants, the properties, the events and the methods along with appropriate parameters.
With the aid of the Inspector in dBASE, the Word Visual Basic documentation, and the Object Browser, you should be able to get a pretty good idea of what you can and cannot do with MS Word. The below diagram, from the Word Visual Basic help file, depicts the Word97 object hierarchy.
About
now, you may be saying how you don’t know Visual Basic and you aren’t really
interested in learning it. Well, fear not. You’ll not need to know much.
You can often let MS Word do much of the work for you. And just how do
you perform this magic? By simply recording a macro in Word while you do
what you want done. Then you just look at the generated source code for
the macro and translate that into something dBASE can pass to Word.
Getting Started
Let’s begin with something very
simple. Let’s assume you want to print a Word document. Begin by starting
MS Word. Click
Tools | Macro | Record New Macro. Give the
macro a name, or accept the default (Macro1)
and click OK. Next, open the document you want to print, and then
click the Print button on the Word toolbar. Finish by clicking
Tools
| Macro | Stop Recording. Now, let’s examine the generated code. Click
Tools
| Macro | Macros. Select the macro you just recorded and click the
Edit
button. This will open the Visual Basic Editor with the generated code.
It will look something like this:
|
Sub Macro1() ' ' Macro1 Macro ' Macro recorded 04/26/99 by Gary White ' Documents.Open FileName:="Doc1.doc", ConfirmConversions:=False, ReadOnly:= _ False, AddToRecentFiles:=False, PasswordDocument:="", PasswordTemplate:= _ "", Revert:=False, WritePasswordDocument:="", WritePasswordTemplate:="", _ Format:=wdOpenFormatAuto ActiveDocument.PrintOut End Sub |
|
As you can well imagine, dBASE would choke if it tried to execute that code. So how do you get this to work in dBASE? A couple of general guidelines:
| dBL Code | Comments | |
| oWord
= new ;
oleAutoclient("word.application") |
First, create the instance of Word | |
| oWord.documents.open(
;
"C:\My Documents\Doc1.doc", ; false, true ) |
Next, open the document. While the recorded macro includes a whole bunch of parameters, if the document is a Word document and it is not password protected, you can safely ignore everything but the file name. The file name you use should include the full path to the document. Since the file name is the first param, that's all you really need. However, the possibility exists that another user could have this document open, in which case, a nasty dialog box would be displayed asking what to do next. In our case, all we want to do is print the document, so we can safely open the document as "Read-Only" to avoid that. Neither do we want to worry about dialogs asking about converting a document that may be from a prior version of Word. So, in this case, we'll supply a couple more params. The first one, following the file name is a false to indicate no prompt for conversion and the second will be a true to indicate opening "Read-Only". Note that you MUST use parenthesis to enclose the param. | |
| oWord.activeDocument.printOut() | Next, print the document. Once again, note the parenthesis, even though there are no parameters passed | |
| oWord.quit( 0 ) | Now, we close Word. It may take Word two or three seconds to shut down. If you're doing this in a loop, or other fast acting code, it may not release the file quick enough before the next attempt. (you can find information about the quit method in the Word VB help file) | |
| release object oWord | Dispose of our oleAutoclient object | |
| oWord = null | Finally, stub out the reference to make sure it's released | |
With just 5 lines of code, you have created a Word instance, loaded and printed a document, closed Word and cleaned up after yourself! In fairness, a real application should include some minimal error checking to allow it to fail gracefully and abort if necessary. Included in error trapping should be cases where the Word application info is not found in the registry, the file is not found, or the printer is not connected. A series of nested try/catch structures should handle that with a minimum of effort.
The exciting part is that you’ve
not even scratched the surface of the potential uses for this technology.
If you’ve tried the above code, you will have noticed that you never saw
an instance of Word. It was all handled transparently. If you wanted to
open a document and allow the user to edit it, all you need to do is set
your reference to the OleAutoclient’s
visible property to
true (and, of course,
don’t open it read-only):
|
oWord.visible = true |
|
Note that, by default, the macro you recorded will be saved in your “Normal” Word template. It would be a good idea to delete any macro you do not want permanently available in all your Word documents. You do this in Word by clicking the Tools menu, then Macro, then Macros. Highlight the name of the macro you want to delete and click the Delete button.
Creating a New Document
The
add() method of the
documents object is used
to create a new Word document. It can accept up to two parameters. The
first is the name of the template to be used for the new document. If this
argument is omitted, the Normal template is used. The second is a boolean
which, if true,
specifies that the new document is a template. In the following
example, we will create two new documents at the same time:
|
local oWord, oDocument1, oDocument2 oWord = new oleAutoclient('Word.application') oDocument1 = oWord.documents.add() oDocument2 = oWord.documents.add() oDocument1.content.text := 'This is the text of the first letter.' oDocument2.content.text := 'This second letter is very short.' oWord.visible := true |
|
Some text (or the content of a
field or of a variable) can be added to a Word document:
|
#define wdGoToLine 3 #define wdGoToAbsolute 1 local oWord
|
|
To supply the password and open
the document from within dBASE, all you need to do is:
|
local oDocument, cPassword, ConfirmConversions, ReadOnly, AddToRecentFiles, oWord oDocument = <path\name of file> cPassword = "My_Password" ConfirmConversions = false ReadOnly = false AddToRecentFiles = false oWord = new oleautoclient("Word.application")
|
|
In the following code, line 10 places the cursor at the left of the first character on page pn. At line 12, the cursor jumps to the left of the first character on line ln. That line number is not calculated from page pn, but rather from the start of the document. Finally, lines 14 and 16 will place the cursor respectively before the first character of the document and after the end of that document.
If you take out all the numbers
at the left of the following code, put everything in a program and run
it, the code will be executed so fast that nothing between lines 9 and
15 will seem to have been executed: unless your document is very big or
your computer very slow, the first thing you’ll know is that the cursor
is at the end of the document.
|
1 #define oUnit 6 2 #define wdGoToLine 3 3 #define wdGoToPage 1 4 #define wdGoToAbsolute 1 5 local oWord
|
|
Bookmarks can be displayed in a
Word document: select the menu item Tools | Options… and under the
View
tab, check the Bookmarks checkbox. If you assigned a bookmark to
a location, the bookmark appears as an I-beam. If you assigned a bookmark
to some text, that text appears in brackets ([…]) on the screen. The following
code will insert the new text at the right of the I-beam when the bookmark
was assigned to a location. However, that code will replace
the bookmarked text and delete the bookmark itself.
|
local oWord, r oWord = new oleautoclient("Word.application") oWord.visible = true oWord.documents.open("docname.doc", true, false, true) if oWord.activedocument.bookmarks.exists("bookmark1") == true r = oWord.activedocument.bookmarks("bookmark1").range r.text = "new text is here" endif |
|
Similarly, you might have to seek
and replace all occurances of some text before performing mail-merge. That’s
easy enough with Word:
|
#define oUnit 6 local oWord, oFind
|
|
Note that, other than the Text property, the rest of the oFind object properties shown above are the default values and need not be specifically set unless you want them different than what is shown.
Formatting Bookmarked Text
Assume you’ve created a bookmark
named BoldRedSpot
where
you want the bolding to take place and the text has to be in red:
|
#define wdRed 6 local oWord
|
|
Besides bookmarked text, formatting
Word documents can be done programmatically. The following example sets
a first-line indent of 0.2 inches for each paragraph and changes the whole
document into a double-spaced document:
|
#define oUnit 6 local oWord, n
|
|
Typographers call “widows” a single
short line at the top of the page or column which is the end of
a sentence or a paragraph. “Orphans” are sometimes erroneously called widows:
they are the lines which lead into a larger block of type, but which have
been left by themselves at the end of a page or column (in other words,
an orphan is the first line of a paragraph, left alone at
the end of a page). Widows and orphans are considered undesirable. To control
both, the WidowControl property
has to be set to true.
|
local oWord oWord = new oleautoclient("Word.application") oWord.visible = true oWord.documents.open("docname.doc", true, false, true) oword.activeDocument.paragraphs.widowControl := true |
|
To insert a page break after the
46th line of the document:
|
#define wdGoToAbsolute 1 #define wdGoToLine 3 #define wdPageBreak 7 local oWord
|
|
To insert a page break after each
block of 40 lines of text, we could use a loop based on the line number:
|
#define wdGoToAbsolute 1 #define wdGoToLine 3 #define wdPageBreak 7 #define wdStatisticLines 1 local oWord, nTotalLines, nLineNo
|
|
The following will set the top
margins to 1.5 inches and the bottom margins to 2 inches. It will not add
to the actual margins but rather change them to the new settings:
|
#define InchToPoints 72 local oWord
|
|
Creating a Table in a Word Document
To fill a table in a document,
the add()
method
of the tables object
can be used, as in the following example. Here, after line 19 (the old
line 20 will be pushed down), a new table will be added:
|
#define wdGoToLine 3 #define wdGoToAbsolute 1 local q, oWord, oTable, n, oCells
if q.rowset.first()
|
|
To merge cells in a Word table,
the merge()
method
of the cells object
will be used. Here we will merge all cells between the one at the first
column of the 5th row, to the one in the third column of the 8th row:
|
local oWord, oTable, oCells oWord = new oleautoclient('word.application') oWord.visible := true oWord.documents.open("docname.doc",true,false,true) oWord.activeDocument.tables.add(oWord.selection.range, 1, 3) // if we want to merge cells in the 1st table in the document oTable = oWord.activeDocument.tables(1) // from: oCells = oTable.rows(5).cells(1) // to: oCells.Merge(oTable.rows(8).cells(3)) |
|
Word can be used to create forms
or surveys. Creating the form can be done programmatically:
|
local oWord, oDocument, oTable, n, oBorders, oCells oWord = new oleautoclient('Word.application') // create a new document oDocument = oWord.documents.add() // place a heading at the top in 18 pt bold type with(oWord.selection) paragraphformat.alignment := 1 font.bold := true font.size := 18 text := 'Questionnaire' + chr(13) + chr(13) endwith // add a table
// format the table to 10 point plain text
// hide the table borders
// insert questions and form fields for
answers
// protect the form so all the user can
// show Word
oDocument.saveas(set('directory') + '\demo.doc') |
|
Reading the answers from a Word
survey can also be done programmatically. If you’ve created the questionnaire
with the code above, insert your answers, save the document, then try the
following code which will list your answers in the Command Window:
|
local oWord, oDocument, n oWord = new oleautoclient('word.application') // open the document document oDocument = oWord.documents.open(set('directory') + '\demo.doc') // get the results from the form fields for n = 1 to oDocument.formfields.count // insert your code. For example: ? oDocument.formfields(n).result next oWord.quit() |
|
The name property of a Word document
object is read-only. The name is not created until the document is
saved. To name a document, your only option is to save the document
immediately after add()ing
it:
|
local cOldName, cNewName, oWord cOldName = 'c:\eval.doc' cNewName = 'c:\eval_new.doc' oWord = new oleautoclient('Word.application') oWord.documents.open(cOldName) // make some changes if needed oWord.activeDocument.SaveAs(cNewName) oWord.activeDocument.close() delete file (cOldName) |
|
Assuming you have the appropriate
record displayed in a form and the memo field is datalinked to
Form.editor1:
|
local oWord oWord = new oleAutoclient('Word.application') oWord.documents.open('My_document.doc') oWord.selection.wholestory() oWord.selection.copy() Form.editor1.value = '' Form.editor1.paste() oWord.quit(false) |
|
Performing a mail-merge can be a very beneficial part of an application. We’ve all seen those organizations that store massive amounts of data. They generate blizzards of paper printouts of every conceivable piece of information. They, in fact, generate so much paper that it becomes useless. They bury themselves in data to the point that it becomes meaningless and can be put to no good use. A mail-merge is one way of using this stored data that will provide a tangible, beneficial result. We’ll use the dBASE OleAutoclient class to accomplish this task.
We will now examine three methods of creating the mail-merge document. Each has its advantages and disadvantages. You’ll have to decide which is best for use in your particular application. Note that the following pages are intended to be read in order. Each builds on the information in preceding pages and avoids excessive repetition by leaving some things out.
This document has only scratched the surface. As you continue to use and learn about the OleAutoclient class and MS Word, you’ll see that there is little to stand in the way of doing nearly anything you want, right inside your dBASE program. This interoperability can add immeasurable value to your dBASE program.
